¶ What is Sonarr?
Sonarr is a PVR for Usenet and BitTorrent users. It can monitor multiple RSS feeds for new episodes of your favorite shows and will grab, sort and rename them. It can also be configured to automatically upgrade the quality of files already downloaded when a better quality format becomes available.
¶ Installation
services:
sonarr:
image: lscr.io/linuxserver/sonarr:latest
container_name: sonarr
environment:
- PUID=568
- PGID=568
- TZ=America/New_York
volumes:
- /mnt/tank/configs/sonarr:/config
- /mnt/tank/media:/media
ports:
- 8989:8989
restart: unless-stopped
¶ Permissions & Folder Structure
- PUID / PGID: Ensure you use a user/group with the correct permissions for accessing media folders. TrueNAS SCALE defaults to 568:568 for apps.
- Volumes: The container structure follows a common-sense naming convention, storing configurations under /mnt/tank/configs/sonarr
- 📌 Refer to the Folder-Structure guide for more details.

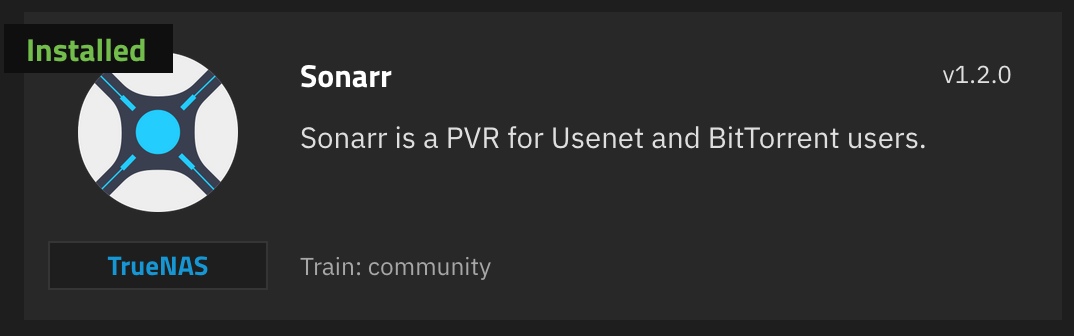

- Install Sonarr from the TrueNAS Community Apps catalog.
- Use the Community version when available.
- Change the Config Storage Type to Host Path as per the TrueNAS SCALE guide.
- Click Add under Additional Storage to mount the media directory inside the container.
¶ Sonarr Configuration
¶ Root Folder
- Navigate to Settings > Media Management
- Click the button to Add Root Folder
- Select the
/media/tvdirectory
¶ Download Client
- Navigate in Sonarr to Settings > Download Client
- Click the ➕ icon. Click the box for qBittorrent
- Configure the following:
| Setting | Value |
|---|---|
| Host | Server IP |
| Port | qBittorrent WebUI port |
| Credentials | Set up during qBittorrent installation |
¶ Advanced Settings
The below settings are for advanced users and are totally optional. To see all of the Advanced fields (usually colored orange) be sure to click the cog icon in the top left of the window to Show Advanced.
This assumes you are using Recyclarr to sync data to Sonarr. If you are not, do not continue. See the video walkthrough below for more details.
¶ Media Management
| Field | Value |
|---|---|
| Rename Episodes | True |
| Standard Episode Format | {Series TitleYear} - S{season:00}E{episode:00} - {Episode CleanTitle} [{Custom Formats }{Quality Full}]{[MediaInfo VideoDynamicRangeType]}{[Mediainfo AudioCodec}{ Mediainfo AudioChannels]}{[MediaInfo VideoCodec]} |
| Daily Episode Format | {Series TitleYear} - {Air-Date} - {Episode CleanTitle} [{Custom Formats }{Quality Full}]{[MediaInfo VideoDynamicRangeType]}{[Mediainfo AudioCodec}{ Mediainfo AudioChannels]}{[MediaInfo VideoCodec]} |
| Anime Episode Format | {Series TitleYear} - S{season:00}E{episode:00} - {absolute:000} - {Episode CleanTitle} [{Custom Formats }{Quality Full}]{[MediaInfo VideoDynamicRangeType]}[{MediaInfo VideoBitDepth}bit]{[MediaInfo VideoCodec]}[{Mediainfo AudioCodec} { Mediainfo AudioChannels}]{MediaInfo AudioLanguages} |
| Series Folder Format | {Series TitleYear} [imdbid-{ImdbId}] |
| Episode Title Required | Never |
| Propers and Repacks | Do Not Prefer |
| Recycling Bin Cleanup | 1 |
| Set Permissions | True |
| chmod Folder | 777 |
¶ Profiles
- Delete all profiles not created by Recyclarr
- Change the default profile for Jellyseerr to the new ones created by Recyclarr
- If you cannot delete a profile it is because it is in use by a series. Find out which series uses it and change it to the new profile, then go back and delete the old one.
Why use Recyclarr profiles?
Recyclarr automates profile creation and ensures consistent quality filtering, metadata tagging, and download prioritization for a better Sonarr experience.
¶ Connect (Notifications)
See this section of the Notifications page.
¶ Metadata
Select Kodi (XBMC)/Emby and check the Enable box. Save and close.
Why enable metadata?
Enabling metadata allows Sonarr to send detailed episode information, artwork, and tags to your media server (Kodi/Emby), enhancing library organization.
¶ General > Backups
- Navigate to the bottom to the Backups section
- Change the folder to
/media - Set the Interval to 1 and the Retention to your preference (default: 7 days).
¶ Troubleshooting
¶ Sonarr Cannot See Media Files
- Ensure your volume paths in Docker match the root folder in Sonarr.
- Run to check file ownership and permissions:
ls -lah /mnt/tank/media/tv
- If needed, change ownership using:
chown -R 568:568 /mnt/tank/media/tv
¶ Permission Errors (Permission Denied)
Ensure your user (PUID / PGID) has access to the media folders.
Try running:
chmod -R 770 /mnt/tank/media/tv
¶ Sonarr is Downloading But Not Moving Files
- Verify that your Download Client Path Mapping is correctly set.
- In Settings > Download Clients ensure Sonarr has access to the completed download folder.
